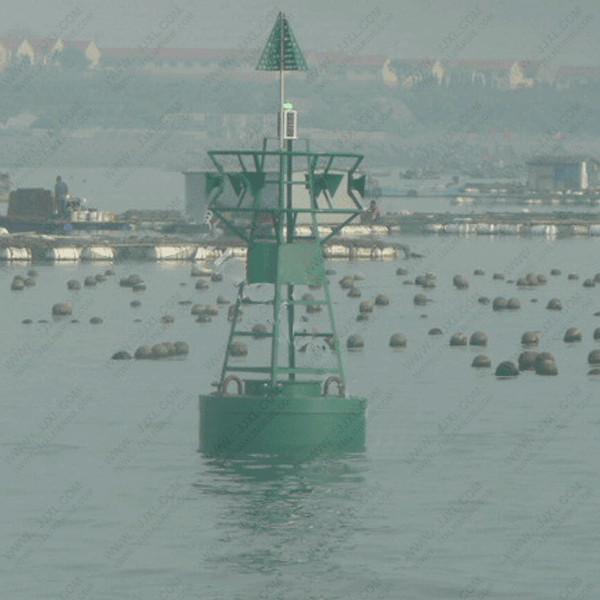

Offshore Anchor Mooring Buoy
Supply by chinafenders.com
Product Description
Mooring Buoys - A Mooring Buoy system consists of multiple steel
buoys. The exact configuration depends on water depth, field
requirements and environmental conditions. Typically it is a
pattern of four to eight mooring points used to moor tankers. Each
point consists of a rigid buoy moored to the seabed by a chain and
an anchor. The prime purpose of each buoy is to act as an anchoring
point for the tanker to berth. The buoys are moored to the seabed,
therefore, the tanker berths without use of its own anchors.
Each buoy has a chain hawser assembly through the centre of the
buoy unit, terminating in a chain stopper on deck. The buoys are
normally fitted with double quick release hooks to disconnect
quickly from the tanker. Hawsers are connected to the bow or stern
of the tanker on one end and to the quick release hook of the buoy
on the other end.
After mooring to the buoys, the tanker may start (off)loading by
connecting a subsea hose string to the ships manifold. The other
end of the hose string connects to the PipeLine End Manifold
(PLEM),
fixed to the seabed or any other pipeline transferring the product
to or from any installation located onshore or offshore. Should the
tanker leave the berth, the hose string will be laid down on the
seabed, to be picked up again when the next tanker arrives.
Anchor arrangement - An anchor arrangement is deployed to connect
the buoy to the seabed. For each buoy, dynamic behaviour
calcultions predict the behaviour of the buoy for various wind,
wave and current conditions. These calculations determine the
optimum anchor leg arrangement, and the size of the various anchor
leg components.
Basic anchor leg components are:
Anchors or piles, depending on the soil data, to connect the anchor
legs to the seabed
Anchor chain
Chainstoppers to connect the chain to the buoy
Producing range: include anchor,anchor chain,mooring
bollards,fairlead,chock,windlass,winch,combined windlass and
winch,capstan,towing win,crane,shark jaw etc.
Ps:
Our main products range is marine deck and outfitting equipments.
You can send the products of your interesting to us.
We will confirm spec and price for you.
We are also can production according to your drawing.
More spec and price contact with us confirm,pls.
Contact with us confirm catalog and spec,pls.
Packaging &Shipping
Our Service
We are specialized in all marine equipments and could provide
installation guide.
We have ISO certificate, and general products and will provide Mill
Certificate, also, we could provide ABS, BV, CCS, DNV, GL, LR, KR,
NK, RINA, RS certificate, and we accept third party inspection,
such as SGS etc.
Note: the datas in table are just for reference, we could design and
recommend correct model according to client's requirements, if you
have no idea, just send us ur ship or project information, we could
help you.
